Pre-Engineered Automated Modules for Machine Tending/Material Handling!
CNC to Injection Insert Molding Hybrid System/Extrusion/Pultrusion Handling!
Helping Human Opportunity Means: Enabling a manufacturing business to overcome labor shortfall problems, maintain, or even increase productivity speed and consistency. We have the robotic integrated modules you need for this! This allows you to have your people doing the things that people do well and enjoy more! We are looking for distribution partners/customers in the US and Europe. If you have interest in supplying the growing automation need in your region, let’s discuss partnering together! Our economic flexible feeding/handling systems are the solution/opportunity you’ve been waiting for! Well engineered intuitive/easy to use operating software!
New TPC-Mobile Cobot Workstation
Cobot applications continue to grow across all sectors. We introduce our new TPC for cobots: a proven integration module we’ve adapted to be the Cobot Workstation the market asked us for! Light on it’s feet but with adequate payload and excellent maneuverability/mobility for small- large factories. Has safety proximity sensor: Keyence, machine vision: Basler, PLC: Mitsubishi/Keyence, for locating with CNC Machine and also for pick/place duty! 4 Drawer racking system for material/part placement/storage. Easy to operate! Available as machine tending module only or bundled with Fanuc’s popular CRX 10iA/L Cobot Arm! Will work with most Cobots: Fanuc CRX 10,20, UR 10e ,16e, ABB: GoFa, Doosan, etc.
HS-1 CNC/Plastic Injection
Our Hybrid Suite: offers excellent tending solutions for Fanuc RoboDrill CNC Machine and RoboShot Electric Plastic Injection Presses incorporating Fanuc LR Mate Industrial robots. Our Modules FA-1 for CNC and PM-1 for Injection Molding Machine can also be paired with other CNC machines and Injection presses for machine tending, picking/placing, material transfer and paired with other robots/cobots too.
Our FA-1 module enables the robotic arm to pick up material blanks with our specially designed double grippers and place them into the machine bed vise/chuck. After machining is finished the gripper will pick up the semi-finished part and turn it in the vise for additional face machining or if complete, pick it up and place it into the drawers or bins depending on the module model and design. Repeating the process until the job run is complete.
For Plastic Injection Press: PM-1 performs Robotic Mold Tending: picking and placing of inserts into the injection mold for insert overmolding. It also picks the insert overmolded part and transfers to the conveyor, picks the sprues and runners (plastic excess material) for depositing in the regrind pile for recycling. PM-1’s automated Insert overmolding system enables tight tolerance locating in single or multiple cavity tools. The inserts can be plastic, metal, composite fiber, etc. We provide reduced cycle time, increased productivity, enhanced molded part quality, reduced scrap, and mold protection.
PE-1 Plastic Extrusion Automated Cell
Our Automated Handling Cell can be used with Extrusion System for Plastic/Rubber or with Pultrusion System for Composite Forms. Fanuc LR Mate M20iD/35 provides measuring/cutting/ stacking and weighing of forms. Cell configuration/scale can be customized to meet your requirements.
T2 Flexible Feed/ Price Point Solution for CNC Lathing/Turning
T2 automation design features: Small Footprint/PC System Control (high software scalability) Low Volume-High Mix
High Diversity of round and square stock enables quick line changing. Picks stock out of rack and places into the CNC Machine for clamping; then picks the finished workpiece and places back into the workpiece holding rack in the T2 module. Can perform preliminary remote trouble shooting through network connection.
Simple and Safe: FA-1 Compact Solution for Medium Sized Bot
FA-1 is a feeding system that can load materials and work in conjunction with industrial robots. Good for Low Volume High Mix or High Volume Low Mix!
It is suitable for milling, turning, cleaning, and inspection feeding systems and can be used with single or multiple processing machines, depending on the production requirements.
It can be used with various types of processing machines, such as milling machines, lathes, or turning-milling combination machines. The planning mode
can be 1 to 1, 1 to 2, or 1 to 3, providing increased integration and versatility.
It has multiple layers of drawers and a large storage capacity, allowing for the arrangement of workpieces based on their size and it ensures the safety of the workers while the robot is carrying out loading and unloading operations on the other side.
The tray size of FA-1 is 30.75 x 19″ (780X480mm), making it particularly suitable for medium-sized workpieces or for placing quick-change clamping modules. The tray
can still be manually handled by one person after loading the workpiece.
FA-1 is equipped with a touch panel, making the production schedule visualized and user-friendly.
SL-1 Sliding Door Type w Material/Workpiece cart
For Lathe/Turning Center: FD-1 Front Entry Type
FD-1 is a material loading system that integrates with industrial robots. It is suitable for use in conjunction with milling, turning, cleaning, inspection, or other feed systems.
FD-1 can be configured alongside a single processing machine as part of the production operation. It features multi-layered trays for increased storage capacity.
This system is ideal for relatively small to medium-sized parts, often with
FD-1 retains work space for manual mold changing, and its arm can move left and right. The tray size is 15.4 x 12.6″ (390x320mm), specifically suitable for small to medium-sized pieces, maintaining a weight that can be handled by one person even after loading the workpiece onto the tray.
The trays can store different types of work pieces, which can be extracted by the system according to processing requirements. Utilizing a touchscreen panel, FD-1
offers visual representation of the production progress, enhancing user-friendliness and intuitiveness.
CC-1 Enclosed Material Cart Feeding System
CC-1 applies to: Fully automated feeding system for automatic clamping and automatic storage for CNC lathes and CNC mills.
Work center machine. CC-1 implementation:
Automatic exchange of workpieces, automatic workpiece storage space, and production sequencing system management.
CC-1 has: Fully automated signal integration and collaborative production capabilities with the work machine to achieve fully automated processing and production planning and setting.
Z-axis lift can raise or lower material tray for feeding/retrieving level by level as needed
EOAT= End of Arm Tools
These Tools Serve as the Hands on the Robotic Arms. They Provide the Functionality for the Intended Labor Processing. Therefore, the Correct Integration/Design is Vital. We have Much Experience Doing Integrations for Each Project. We incorporate the Necessary Cylinders, Jaws and other Components to Bring the Needed Dynamic Movement of the Tool to Life! Can Do Production for Re-Sale Separately or with Modular Equipment. Pneumatic/Mechanical/ Vacuum Solutions All Available! Let Us Know What Your Use Case is and We’ll Arrange a Meeting.
Do You Need Modular Automated Machines?

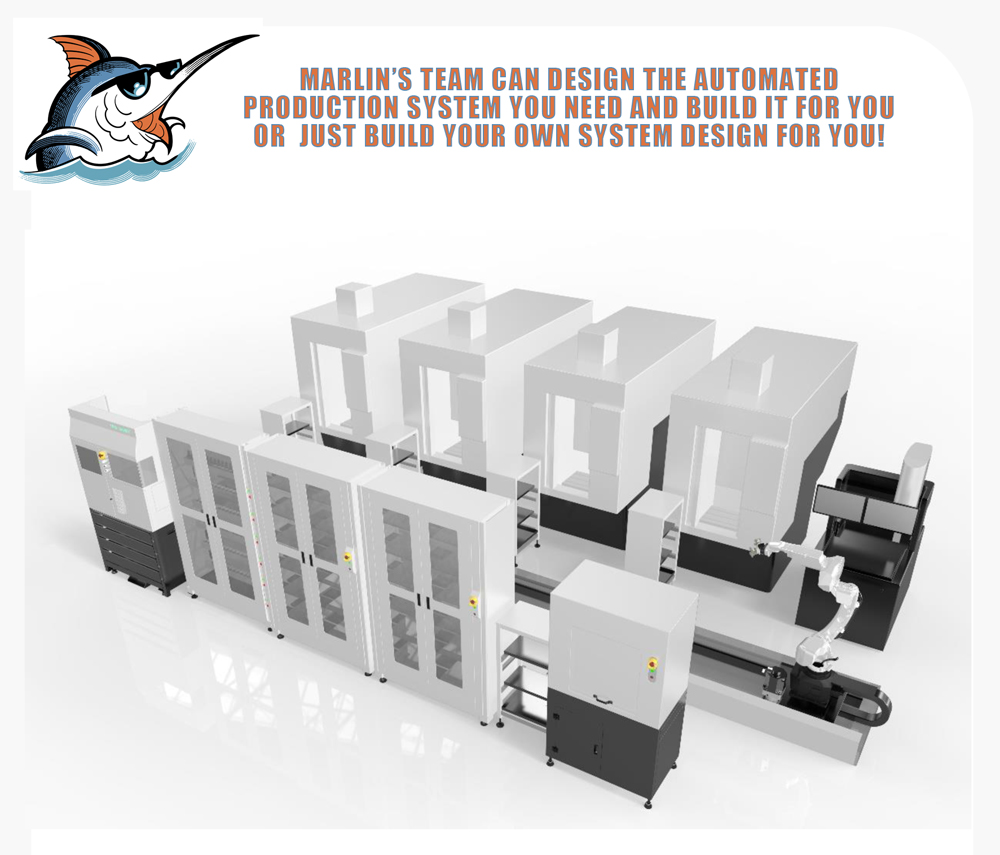

If you have a need for automated modular machines we can make it for you to your design spec. For material handling, processing, assembly, etc. We can design and integrate it for you into a functional module. We excel at refining your use case into a cohesive integrated mechanical form/system. Send us NDA to sign at the e-mail button below! Our machine design uses cutting edge technology, including the very latest in 3-D CAD modeling software, to ensure that we exceed our clients’ expectations. We have the engineering capabilities to complete your entire project from concept to installation.
