Die Grinders/Wheel Grinders

Click here for catalog

Die Grinders

Tech Data



SG-41: Collet: 1/4″/6mm/ HP: .45
Max Speed: 22,000 rpm/ Avg. Air Consumption: 3 CFM
Weight: .88 lb (0.4 kg) / Length: 5″-7/8″/ 150mm /Air Inlet: 1/4″/ Rear Exhaust
Connecting Thread: 1/4″ / Minimum hose diameter: 3/16″Noise level: 73 dBA Vibration: <2.5 m/sĀ² Packing: 20 pcs/0.5cu-ft/G.W.: 24.2 lb (11kg)

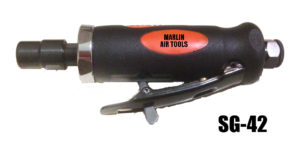

SG-42: Collet: 1/4″/6mm/ HP: .45
Max Speed: 20,000 rpm /Ā  Avg. Air Consumption: 3 CFM
Weight: .88 lb (0.4 kg)/ Length: 5″-7/8″/ 150mm /Air Inlet: 1/4″/ Front Exhaust
Connecting Thread: 1/4″ /Minimum hose diameter: 3/16″ Noise level: 80 dBA Vibration: <2.5 m/sĀ² Packing: 20 pcs/0.5 cu’/G.W.: 24.2 lb (11kg)

Ā Angle Die Grinders

Ā

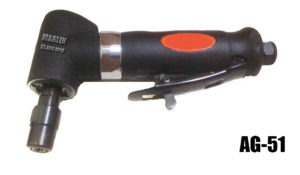

AG-51: Tool Holder/Spindle Thread: 1/4″/6mm /HP: .4
Max Speed: 22,000 rpmĀ Ā  /Avg. Air Consumption: 3.45 CFM
Weight: 1.21 lb (0.55 kg) / Length: 6″-3/4″/ 170mm /Air Inlet: 1/4″/ Front Exhaust
Connecting Thread: 1/4″ /Minimum hose diameter: 3/16″Noise level: 80 dBA Vibration: <2.5 m/sĀ² Packing: 20 pcs/1.1 cu’/G.W.: 26.4 lb (12kg)

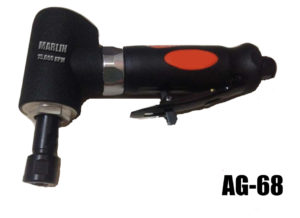

AG-68: Collet: 1/4″/6mm /HP: .6
Max Speed: 15,000 rpmĀ  /Avg. Air Consumption: 3.45 CFM
Weight: 1.7 lb ( 0.75 kg) / Length: 7″-1/16″/ 180mm Air Inlet: 1/4″/ Rear exhaust
Connecting Thread: 1/4″ /Minimum hose diameter: 1/4″Noise level: 78 dBA Vibration: <2.5 m/sĀ² Packing: 20 pcs/1.6 cu’/G.W.: 35.3 lb (16kg)

2″ High Speed Cut Off

Ā

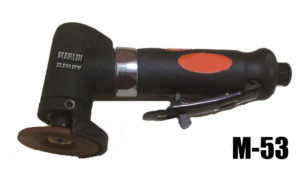

M-53: Wheel Dia.: 2″/ 50mmĀ Ā  Collet: 1/4″/6mm /HP: .4
Max Speed: 22,000 rpmĀ  / Avg. Air Consumption: 2.5 CFM
Weight : 1.1 lb (0.51kg) / Length: 7″/ 177mm /Air Inlet: 1/4″
Connecting Thread: 1/4″ /Minimum hose diameter: 1/4Noise level: 73 dBA Vibration: <2.5 m/sĀ² Packing: 20 pcs/1.1 cu’/G.W.: 26.4 lb (12kg)
